Deployment of private databricks workspace.

[lubiarzm1]

I tried to create configuration of Databricks with Vlan injection and I faced few problem during deploymen.

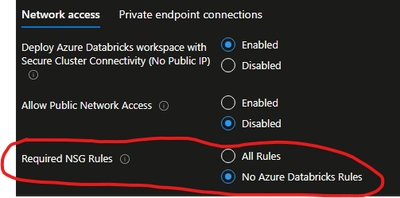

1. I tried to deploy my workspace using IaC and terraform. Whole time I face issue with NSG even when I create configuration as follow in this docs https://learn.microsoft.com/en-us/azure/databricks/security/network/classic/vnet-inject#nsg . On GUI I could use option and it works.

But terraform api do not contain this option ( I tries latest azure_rm ). How to walk-around that.

2. After deployment my compute cluster has problem with starting

Error message: [details] X_NHC_CONTROL_PLANE_SSL_ERROR: Instance failed network health check before bootstrapping with fatal error: X_NHC_CONTROL_PLANE_SSL_ERROR 2 failed component(s): control_plane internet Retryable: false Based on the failure results: List(entity: "adb-xxxxxxxxxxx.0.azuredatabricks.net" outcome: "ssl_error"
duration_sec: 241.42003 message: "curl: (35) OpenSSL SSL_connect: Connection reset by peer in connection to adb-xxxxxxxxxxx.0.azuredatabricks.net:443" last_error_code: 35 , entity: "www.databricks.com" outcome: "ssl_error" duration_sec: 223.5729 message: "curl: (35) OpenSSL SSL_connect: Connection reset by peer in connection to www.databricks.com:443" last_error_code: 35 )(OnDemand)
Azure error code: X_NHC_CONTROL_PLANE_SSL_ERROR  Azure error message: Instance failed network health check before bootstrapping with fatal error: X_NHC_CONTROL_PLANE_SSL_ERROR 2 failed component(s): control_plane internet Retryable: false Based on the failure results:
List(entity: "adb-xxxxxxxxxxx.0.azuredatabricks.net" outcome: "ssl_error" duration_sec: 241.42003 message: "curl: (35) OpenSSL SSL_connect: Connection reset by peer in connection to adb-xxxxxxxxxxx.0.azuredatabricks.net:443" last_error_code: 35 , entity: "www.databricks.com" outcome: "ssl_error" duration_sec: 223.5729 message: "curl: (35) OpenSSL SSL_connect: Connection reset by peer in connection to www.databricks.com:443" last_error_code: 35 )(OnDemand)

  It's looks like I have problem with connection between control plane and workers. How to handle that?

Maybe you got some examples of NGS ,
My terrafrom manifest looks like:

resource "azurerm_databricks_access_connector" "connector" {
  name                = "dac-${var.name_of_workspace}"
  resource_group_name = var.rg
  location            = var.location

  identity {
    type = "SystemAssigned"
  }
}

resource "azurerm_databricks_workspace" "workspace" {
  provider                              = azurerm
  name                                  = "dw-${var.name_of_workspace}"
  resource_group_name                   = var.rg
  location                              = var.location
  sku                                   = var.tier_of_databricks

  managed_resource_group_name           = "${var.name_of_workspace}-managed"
  public_network_access_enabled         = false
  default_storage_firewall_enabled      = false
  access_connector_id                   = azurerm_databricks_access_connector.connector.id

  custom_parameters {
    virtual_network_id      = var.vnet_id
    public_subnet_name      = var.subnet_name_public
    private_subnet_name     = var.subnet_name_private

    public_subnet_network_security_group_association_id  = var.public_nsg_id
    private_subnet_network_security_group_association_id = var.private_nsg_id
  }

  tags = merge(local.default_tags,
    { module_version = var.module_version }
  )

  depends_on = [
    azurerm_databricks_access_connector.connector
  ]
}

  required_providers {
    databricks = {
      source = "databricks/databricks"
      version = "~> 1.97.0"
    }
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~>4.53.0"
    }
  }

Of course to handle connection I used private endpoint to auth and ui-api.

[lubiarzm1]

Oh and I forget, I can not use nat gateway to outbound traffic.

[lubiarzm1]

I investigated with my network team and workers not following traffic via private endpoint to my workspace but via public address. How to walkaround it.

[Coffee77]

It seems to be an issue coming from your VNET Table Route configuration. Try to knowing exact reason is complex without being able to look into. Take a look here for details on how to confiigure: https://learn.microsoft.com/en-us/azure/databricks/security/network/classic/udr

[lubiarzm1]

After opening traffic to public address of workspace my error change to

Error message: [details] X_NHC_CONTROL_PLANE_HTTP_ERROR: Instance failed network health check before bootstrapping with fatal error: X_NHC_CONTROL_PLANE_HTTP_ERROR 2 failed component(s): control_plane internet Retryable: false Based on the failure results: List(entity: "adb-xxxxxxxxxx.azuredatabricks.net" outcome: "http_error"
duration_sec: 282.8475 message: "Configured privacy settings disallow access for this workspace over your current network. Please contact your administrator for " last_error_code: 401 , entity: "www.databricks.com" outcome: "ssl_error" duration_sec: 226.39476 message: "curl: (35) OpenSSL SSL_connect: Connection reset by peer in connection to www.databricks.com:443" last_error_code: 35 )(OnDemand)

workers are not resolving my workspace address to private endpoint. There is possibility to change that?

[lubiarzm1]

Issue with network connection was resolved, network security group has to be extended.
Last issue is to translate it to IaC.

[lubiarzm1]

* Failed to execute "terraform apply" in ./.terragrunt-cache/Dw9Jqv7V6amuufaJ5H_OSywE4io/KQfeJxFLHcWRWQjrzR87EgDhs9o/stacks/databricks/workspace
  ╷
  │ Error: creating Workspace (Subscription: "XX"
  │ Resource Group Name: "rg-int"
  │ Workspace Name: "dw-analytics"): performing CreateOrUpdate: unexpected status 400 (400 Bad Request) with error: PrivateWorkspaceNotSupportedForSpecifiedRequiredNsgRules: RequiredNsgRule 'AllRules' is invalid for public network disabled workspaces.
  │
  │   with module.workspace.azurerm_databricks_workspace.workspace,
  │   on ../../../modules/databricks/adbw/main.tf line 19, in resource "azurerm_databricks_workspace" "workspace":
  │   19: resource "azurerm_databricks_workspace" "workspace" {
  │
  ╵

  exit status 1

[lubiarzm1 · Accepted solution]

All issues was resolved
Ready to deploy code

locals {
  default_tags = {
    terraform                 = "true"
    workload                  = var.app
    env                       = var.environment
  }
}

resource "azurerm_databricks_access_connector" "connector" {
  name                = "dac-${var.name_of_workspace}"
  resource_group_name = var.rg
  location            = var.location

  identity {
    type = "SystemAssigned"
  }
}

resource "azurerm_databricks_workspace" "workspace" {
  provider                              = azurerm
  name                                  = "dw-${var.name_of_workspace}"
  resource_group_name                   = var.rg
  location                              = var.location
  sku                                   = var.tier_of_databricks

  managed_resource_group_name           = "rg-${var.name_of_workspace}-managed"
  network_security_group_rules_required = "NoAzureDatabricksRules"
  public_network_access_enabled         = false
  default_storage_firewall_enabled      = false
  access_connector_id                   = azurerm_databricks_access_connector.connector.id

  custom_parameters {
    virtual_network_id      = var.vnet_id
    public_subnet_name      = var.subnet_name_public
    private_subnet_name     = var.subnet_name_private

    public_subnet_network_security_group_association_id  = var.public_nsg_id
    private_subnet_network_security_group_association_id = var.private_nsg_id
  }

  tags = merge(local.default_tags,
    { module_version = var.module_version }
  )

  depends_on = [
    azurerm_databricks_access_connector.connector
  ]
}

resource "azurerm_private_endpoint" "databricks_pe_ui" {
  name                = "pe-${var.name_of_workspace}-ui"
  location            = var.location
  resource_group_name = var.rg
  subnet_id           = var.subnet_private_endpoint_id

  private_service_connection {
    name                           = "psc-${var.name_of_workspace}-ui"
    private_connection_resource_id = azurerm_databricks_workspace.workspace.id
    subresource_names              = ["databricks_ui_api"]
    is_manual_connection           = false
  }

  tags = merge(local.default_tags,
    { module_version = var.module_version }
  )
  depends_on = [azurerm_databricks_workspace.workspace]
}

resource "azurerm_private_endpoint" "databricks_pe_auth" {
  name                = "pe-${var.name_of_workspace}-auth"
  location            = var.location
  resource_group_name = var.rg
  subnet_id           = var.subnet_private_endpoint_id

  private_service_connection {
    name                           = "psc-${var.name_of_workspace}-auth"
    private_connection_resource_id = azurerm_databricks_workspace.workspace.id
    subresource_names              = ["browser_authentication"]
    is_manual_connection           = false
  }

  tags = merge(local.default_tags,
    { module_version = var.module_version }
  )
  depends_on = [azurerm_databricks_workspace.workspace]
}
