Establishing a Connection between ADLS Gen2, Databricks and ADF In Microsoft Azure

[Pratikmsbsvm]

Hello,

May, Someone please help me with establishing connection between ADLS Gen2, Databricks and ADF, full steps if possibble. Do I need to route through key-vault, this is i am first time doing in production,.

May somebody please share detailed step for implementing in Production.

ADF - Orchastrator

ADLS Gen2 - Storage

Databricks - Processsing data, transformation using pyspark.

Thanks a lot

[juan_maedo]

Hi!

I asume that ADF is just the trigger and it's from Databricks the direct access to ADLS to process the data.

ADLS Access:

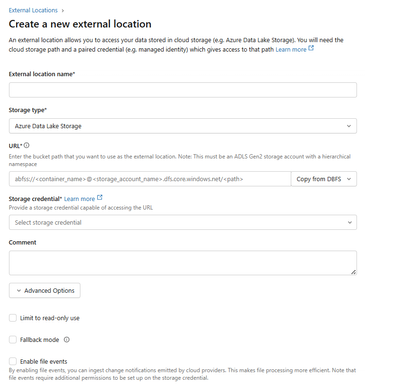

You create an External Location in your Databricks workspace that acts as a bridge to ADLS. This is done through Catalog Explorer.

To set it up:

• Create a Storage Credential using a Managed Identity (or Service Principal) that has permissions to your ADLS

• Create an External Location that links this credential to your specific ADLS path

• You can assign granular permissions at the workspace or catalog level

That's it. Now Databricks can read and write to that ADLS path directly.

Reference: https://learn.microsoft.com/en-us/azure/databricks/connect/unity-catalog/cloud-storage/external-loca...

Calling Databricks Job

To trigger a Databricks job from ADF, you need:

• Job ID - the ID of your Databricks job

• Linked Service - an ADF connection to your Databricks workspace (using a Service Principal)

That's the minimum. Everything else is optional, likes warehouse/cluster id if dont need serverless, parameters jobs, etc.

Reference: https://learn.microsoft.com/en-us/azure/data-factory/transform-data-databricks-job
