Feature request: Allow to set value as null when not present in schema evolution

[Dhruv-22]

I want to raise a feature request as follows.

Currently, in the Automatic schema evolution for merge when a column is not present in the source dataset it is not changed in the target dataset. For e.g.

%sql
CREATE OR REPLACE TABLE edw_nprd_aen.bronze.test_table (
  id INT
  , assignments ARRAY<STRING>
);

INSERT INTO edw_nprd_aen.bronze.test_table
VALUES
  ( 1, ARRAY('S1-1', 'S1-2') )
  , (2, NULL)
  , (3, ARRAY('S3-1'))
  , (4, ARRAY('S4-1'));

SELECT *
FROM edw_nprd_aen.bronze.test_table;

%sql
CREATE OR REPLACE TEMPORARY VIEW test_view (id) AS VALUES (1), (3);

SELECT *
FROM test_view

%sql
MERGE WITH SCHEMA EVOLUTION INTO edw_nprd_aen.bronze.test_table
USING test_view
ON test_table.id = test_view.id
WHEN MATCHED THEN UPDATE SET *
WHEN NOT MATCHED THEN INSERT *;

SELECT *
FROM edw_nprd_aen.bronze.test_table
ORDER BY id

---

What I want is that if the row matches and the column is not present then set it to null. Like the following

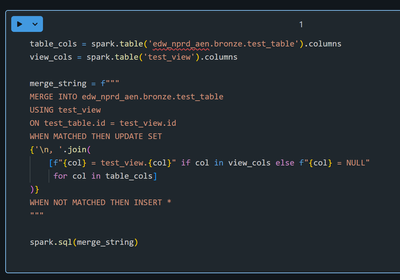

Currently, I'm achieving this as follows

table_cols = spark.table('edw_nprd_aen.bronze.test_table').columns
view_cols = spark.table('test_view').columns

merge_string = f"""
MERGE WITH SCHEMA EVOLUTION INTO edw_nprd_aen.bronze.test_table
USING test_view
ON test_table.id = test_view.id
WHEN MATCHED THEN UPDATE SET
{'\n, '.join([f"{col} = test_view.{col}" if col in view_cols else f"{col} = NULL" for col in table_cols])}
WHEN NOT MATCHED THEN INSERT *
"""

print(merge_string)
spark.sql(merge_string)

It will be great if there could be some in-built option for the same, like

UPDATE SET * NULL IF NOT PRESENT

[ManojkMohan]

@Dhruv-22

Problem

When using MERGE INTO ... WITH SCHEMA EVOLUTION, if a column exists in the target table but is not present in the source dataset, that column is left unchanged on matched rows.

Solution Thinking

This can be emulated by introspecting the table and view schemas and generating the UPDATE SET list explicitly, assigning NULL for any target-only columns

Caution:

This should work, but it adds complexity, dynamic SQL, and more room for errors in larger pipelines.

[Dhruv-22]

Hi @ManojkMohan

Can you identify the possible errors in larger pipelines? How could I achieve the required output without the above code? Your reply is not very understandable.

The reason behind my feature request is as follows: The source is a NoSQL database and the schema coming from it is uncertain. Any new data I get should be written into the table with the previous data overwritten if key already present. Since schema is uncertain and the behaviour required on merge keys is overwrite, I have written this pipeline.

[ManojkMohan]

@Dhruv-22

The introspection-based approach like spark.table().columns introduces fragility

• Concurrency conflicts: Schema reads during MERGE can race with parallel writes, leading to partial column lists
• Column explosion/mutation: NoSQL sources evolve rapidly  https://docs.databricks.com/aws/en/delta/column-mapping
• Performance overhead: Runtime schema diffs on TB-scale tables add 10-30s latency per MERGE (from catalog scans); in streaming/DLT, this cascades to checkpoint lags
• Error prone quoting/escaping: Dynamic interpolation mishandles reserved names (e.g., id, date)

Alternatives

1. Delete+Insert (Recommended for NoSQL Overwrite)

Full Replace Partition (Bronze Layer)

Column Mapping + Rename/Drop (Metadata-Only):
Enable on table: ALTER TABLE test_table SET TBLPROPERTIES (delta.columnMapping.mode = 'name');
Then MERGE ... UPDATE SET * ignores physical mismatches

https://docs.databricks.com/aws/en/delta/column-mapping

An option like MERGE ... UPDATE SET * NULL_MISSING would standardize NoSQL-to-Delta syncs cutting custom logic by 80% vs. delete+insert overhead (~2x write amp). Docs confirm UPDATE SET * skips missing source cols intentionally —nulling them aligns with INSERT * semantics for true overwrites

[Dhruv-22]

Hi @ManojkMohan

Thanks for pointing out the issues. I now get the pain points of writing schema dynamically. The issue with schema read while concurrent writes are happening. And in streaming / DLT tables the schema reads for each write would add to a huge cost.

But, the solution you provided also has its own drawbacks:

• Insert statement doesn't support schema evolution. Insert statement only allows new columns to be present at the end, which I can't control.
• Introducing two writes doesn't have a single point of failure. What if one statement ran while the other failed? Like DELETE ran but INSERT failed? We would have an intermediate state of data which is not usable
• Also, introducing two writes doubles the time of the operation.

Also, what is the benefit of column mapping? It focuses on renaming and deleting columns, neither of which I'm doing here.

Keeping in mind your points, I have these solutions in mind

• Use merge to insert data. But this also has the issue of not having single point of failure.

MERGE WITH SCHEMA EVOLUTION INTO test_table target
USING v_final source
ON target.id = source.id
WHEN MATCHED THEN DELETE;

MERGE WITH SCHEMA EVOLUTION INTO test_table target
USING v_final source
ON target.id = source.id
WHEN NOT MATCHED THEN INSERT *;​

• Double the data, using one set for deletes and another for writes. This helps in building a single point of failure. But doubling of data would not be suitable when we are dealing with huge volumes of data.

MERGE WITH SCHEMA EVOLUTION INTO test_table target
USING (
  SELECT *, 'delete' AS mode FROM test_view
  UNION
  SELECT *, 'insert' AS mode FROM test_view
) AS source
ON target.id = source.id AND source.mode = 'delete'
WHEN MATCHED THEN DELETE
WHEN NOT MATCHED THEN INSERT * EXCEPT (mode);​

If you have any other approaches in mind, would like to hear that.

As of now, I have a batch setup and can ensure there are no concurrent writes happening on the table. So, breaking down the merge into two parts will just double the time.
