Getting [08S01/500593] Can't connect to database - [Databricks][JDBCDriver](500593) Communication

[Saubhik]

I am getting below error connecting a databricks instance using JDBC driver .

ERROR: [08S01/500593] Can't connect to database - [Databricks][JDBCDriver](500593) Communication link failure. Failed to connect to server. Reason: HTTP Response code: 401, Error message: Invalid Authorization .

Is there anything setup/Network policy that we need to complete in Databricks to enable inbound requests?

We are able to connect databricks instance using DBeaver?

[szymon_dybczak]

Hi @Saubhik ,

You're trying to connect DBeaver to Databricks? If so, yes it is possible. Here's a detailed guide how to do that.

DBeaver integration with Azure Databricks - Azure Databricks | Microsoft Learn

It doesn't look like a network issue. JDBC client is able to reach Databricks. At first glance it looks like authentication issue. What type of authentication do you use in configuration?

[Saubhik]

Dbeaver is fine..We are able to access..

But not able to connect Databricks instance from JDBC driver.

Getting below error while tesing the connection...

ERROR: [08S01/500593] Can't connect to database - [Databricks][JDBCDriver](500593) Communication link failure. Failed to connect to server. Reason: HTTP Response code: 401, Error message: Invalid Authorization .

We are passing host, port, user ID(token), token pwd, transportMode=http;ssl=1;AuthMech=3;httpPath=/sql/1.0 as configuration option...

Is there anyting we are missing?

[szymon_dybczak]

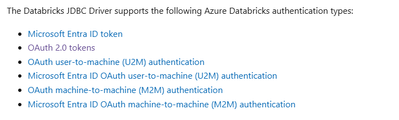

You need to provide us more details. The Databricks JDBC driver support following authentication types. Which one do you use?

I think you have misconfigured something. For example, you're using AuthMech=3, but no authentication types from below documentation are using that type of AuthMech (they use AuthMech=11).
Here's an example of jdbc url from documentation  for OAuth 2.0 authentication type:

jdbc:databricks://<server-hostname>:443;httpPath=<http-path>;AuthMech=11;Auth_Flow=0;Auth_AccessToken=<oauth-token>

Authentication settings for the Databricks JDBC Driver - Azure Databricks | Microsoft Learn
