Import .py files module does not work on VNET injected workspace

[chalabit]

We have problem with import any python files as module on VNET injected workspace.

• For same folder structure (see bellow), the imports works on serverless clusters or in databricks managed workspace (i.e. create new azure databricks workspace without networking), but not in VNET injected workspace.
  • no firewall (we dont have hub-spoke architecture), only NSG, NAT and public dns zones (privatelink.azuredatabricks.net, privatelink.dfs.core.windows.net)
    • NSG rules:
• workspace netowrking setting (SCC enables, public access enabled, no azure datbairkcs rules)+ PE to back-end connectivity
• Once we create any kind of cluster (unrestricted, shared, personal or job) the import issue arise. Tested with runtimes 17.4 and 16.4.
• Py files appears to be visible but empty from the cluster perspective. (we alsp see errno 5 file exists issues
• %run works for notebook but cant import func between notebooks
  Trivial import test:

On serverless (OK):

Any idea what to check or might be missing? I suspect some networking missconfiguration but cant find potentials issue.

[Hubert-Dudek]

Try to go via this manual https://learn.microsoft.com/en-us/azure/databricks/security/network/classic/private-link-standard

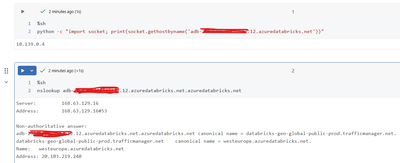

It looks like problem with 443 connection from cluster to control plane. Check also:

%sh
python -c "import socket; print(socket.gethostbyname('<YOUR-WORKSPACE-HOST>.azuredatabricks.net'))"
nslookup <YOUR-WORKSPACE-HOST>.azuredatabricks.net

%sh
curl -I -sS https://<YOUR-WORKSPACE-HOST>.azuredatabricks.net | head

[chalabit]

I will try to recreate manualy the workspace manually since we deployed it via  ARM, but by checking the private-link-standard documentation steps, I think we have same more-less the same setup except for different CIDR ranges for subnets.

For the commands, I dont see anything unussual

[chalabit]

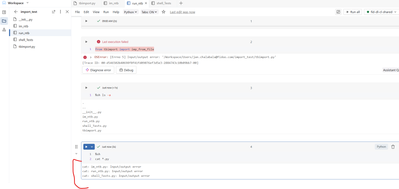

Adding sh error to see file content:

[chalabit · Accepted solution]

Redeploying workspace from azure portal worked with "documentation" VNET injection set up with NSG and NAT gw. Only added new NSG rule on top of deployed rules

Outbound

TCP

VirtualNetwork

Any

AzureDatabricks (service tag)

443, 3306, 8443-8451

No idea where the issue was. Most likely in egress.
