Introduction: The Data Quality Paradox

Here's a paradox every data team faces: data quality is everyone's problem, but implementing it requires specialized skills that few possess.

Data engineers understand the importance of null checks and referential integrity. Data analysts know which business rules matter. Data stewards define governance policies. But translating all of this into executable data quality checks? That requires:

Deep knowledge of data quality frameworks
Understanding of SQL and Python
Familiarity with the specific DQ library's syntax
Time to write, test, and maintain hundreds of rules

The result? Data quality becomes a bottleneck. Rules are written reactively (after problems occur), coverage is inconsistent, and there's no single source of truth for what checks exist or why they were created.

What We Built

Every organization has analysts and business users who understand their data better than anyone. They know which values should never be negative, which fields must always be filled, and which relationships must hold true. But turning that knowledge into automated data quality checks? That's where they hit a wall.

The reality today:

Business analysts identify a data quality issue in their dashboard
They submit a ticket to the data engineering team
When implemented, the rule might not match what was originally needed
Repeat for every new requirement

This creates dependency on both sides. Analysts feel powerless. Engineers feel overwhelmed. And data quality suffers.

DQX Data Quality Manager changes this dynamic.

We built an intuitive web interface that empowers analysts, data stewards, and business users to create production-ready data quality rules - without writing a single line of code. Simply describe what "good data" looks like in plain English, and AI translates that into executable checks that democratizes data quality for the entire organization.

The Technology Stack

Component	Technology	Purpose
Frontend	HTML/CSS/JavaScript	Responsive web interface
Backend	Flask 3.0 + Gunicorn	REST API and page rendering
Data Quality	Databricks Labs DQX	Rule execution engine
AI	Model Serving Endpoint	Natural language understanding
Compute	Serverless Jobs	Rule generation and validation
Data Catalog	Unity Catalog	Data discovery and governance
Storage	Lakebase Autoscaling	Rule versioning and history
Deployment	Databricks Asset Bundles	Infrastructure as code
CI/CD	GitHub Actions + OIDC	Automated deployments

Architecture Deep Dive

Before diving into features, let's understand how the pieces fit together.

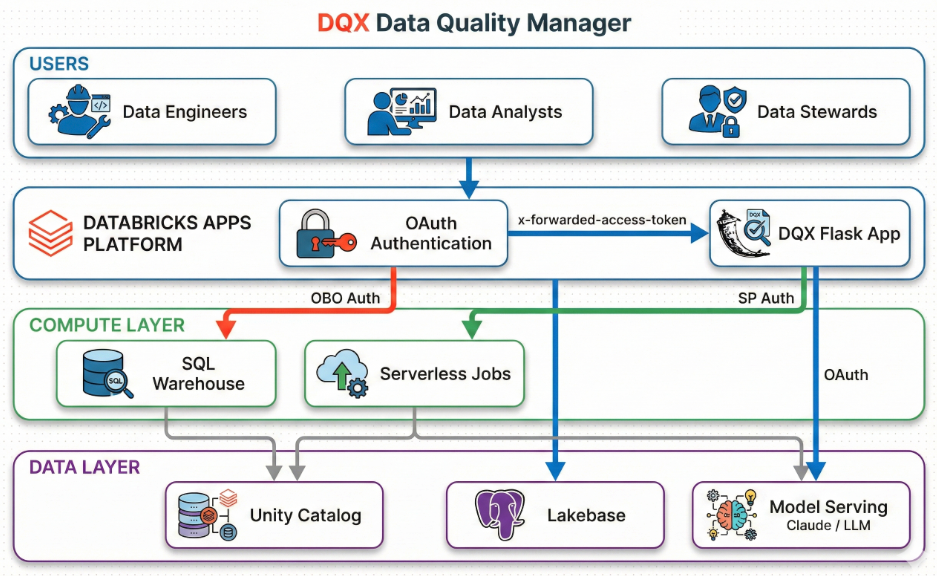

The Four-Layer Architecture

Layer 1: Users

Data engineers, analysts, and stewards access the application through their browser. Each user authenticates via Databricks OAuth, and their identity flows through every operation.

Layer 2: Databricks Apps Platform

The Flask application runs on Databricks Apps, which handles:

OAuth authentication and token management
HTTPS termination and certificate management
Load balancing and auto-scaling
Request routing and header forwarding

Layer 3: Compute Layer

Two types of compute handle different workloads:

SQL Warehouse: Executes queries for catalog browsing, data sampling, and AI analysis
Serverless Jobs: Runs heavy compute for rule generation and validation

Layer 4: Data Layer

Three data stores serve different purposes:

Unity Catalog: Source of truth for table metadata and data
Model Serving: Hosts Claude AI for natural language processing
Lakebase Autoscaling: Stores rule definitions with version history

Why This Design?

Separation of Concerns: The Flask app handles UI and API routing, but delegates heavy computation to serverless jobs. This keeps the app responsive even during long-running operations.
Security by Design: User tokens flow through for data access (OBO), but jobs run with controlled service principal permissions. This prevents privilege escalation while enabling necessary operations.
Scalability: Serverless compute scales automatically. Whether one user or one hundred are generating rules simultaneously, the system handles it without pre-provisioning.

The User Experience: A Complete Walkthrough

Let's follow a data engineer named Josh as she creates quality rules for a new table.

Step 1: Discovering Data

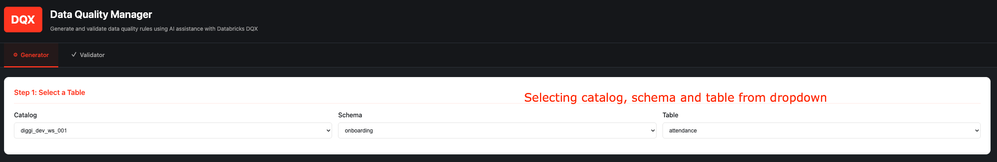

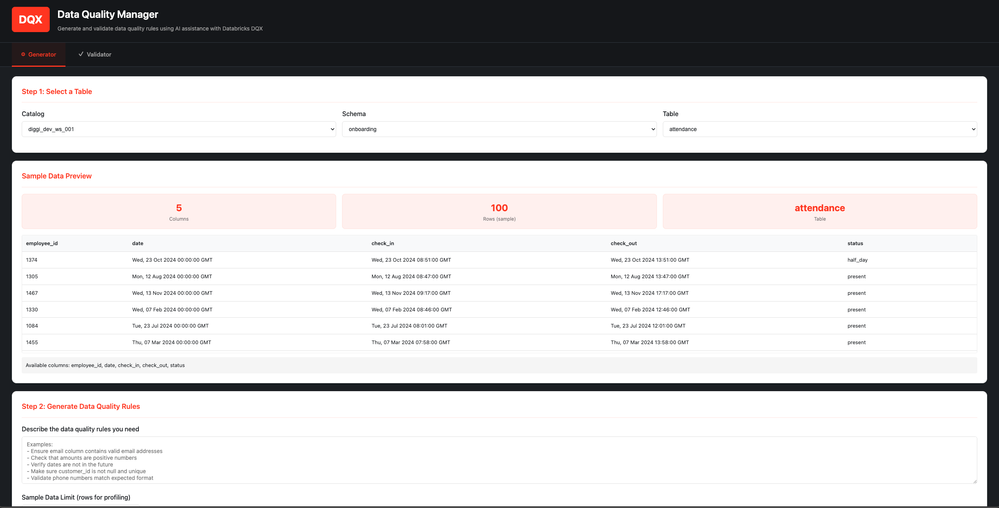

Josh opens the DQX Data Quality Manager and is greeted by the Generator page. The first step is selecting her target table.

The catalog browser shows only what Josh has permission to access. Behind the scenes, the app executes SQL using her forwarded OAuth token:

def get_catalogs(self) -> List[str]:
      """Get list of available catalogs using user's permissions."""
      try:
          # This SQL runs with the user's token (OBO)
          catalogs = self.execute_sql("SHOW CATALOGS")
          return catalogs if catalogs else ["main"]
      except Exception as e:
          print(f"Error listing catalogs: {e}")
          return ["main"]

  def get_schemas(self, catalog: str) -> List[str]:
      """Get schemas in a catalog using user's permissions."""
      return self.execute_sql(f"SHOW SCHEMAS IN `{catalog}`")

  def get_tables(self, catalog: str, schema: str) -> List[str]:
      """Get tables in a schema using user's permissions."""
      result = self.execute_sql_with_schema(
          f"SHOW TABLES IN `{catalog}`.`{schema}`"
      )
      return [row.get("tableName") for row in result["rows"]]

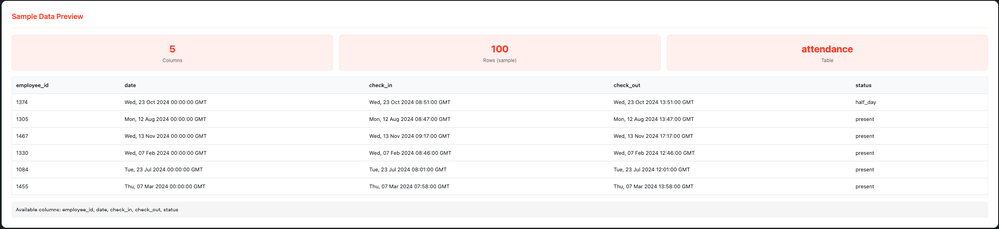

Josh selects her table as shown in previous image. Immediately, the app displays a sample of the data:

This preview helps Josh understand the data structure before writing rules. The sample query also uses her permissions—if she can't SELECT from this table, she can't see the preview.

Step 2: Describing Quality Requirements

Now comes the magic. Instead of writing JSON or YAML or learning DQX syntax, Josh types:

"Generate data quality rules for completeness, validity, and consistency checks."

Josh clicks "Generate Rules" and watches the progress indicator. Behind the scenes, a sophisticated generator springs into action.

Step 3: AI-Powered Rule Generation

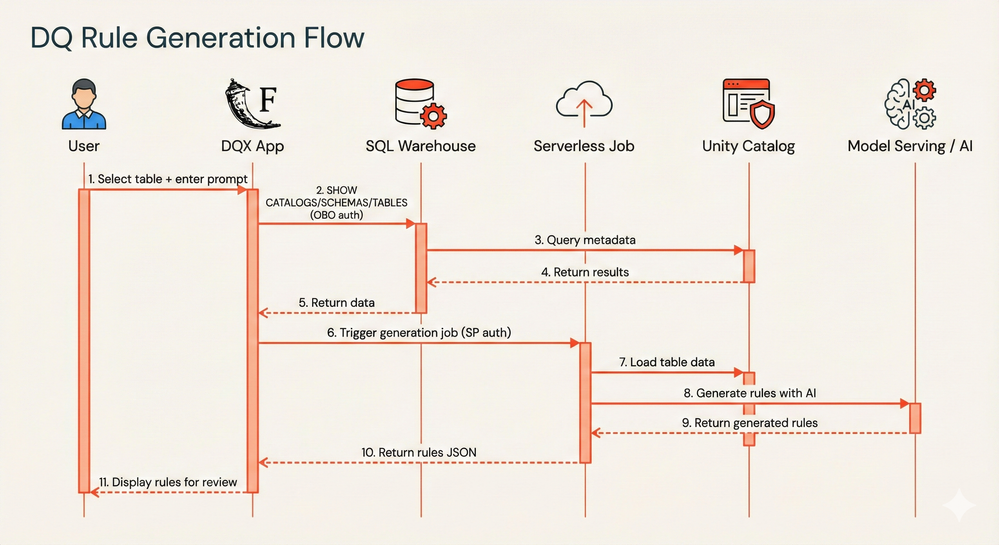

The generation process involves multiple steps:

Step 3a: Job Triggering

The app triggers a serverless job with Josh's requirements:

def trigger_dq_job(self, table_name: str, user_prompt: str,
sample_limit: Optional[int] = None) -> Dict[str, Any]:
"""Trigger the DQ rule generation job."""

# Jobs use service principal (no user token scope for jobs API)
client = self._get_client(use_user_token=False)

job_parameters = {
"table_name": table_name,
"user_prompt": user_prompt
}

if sample_limit:
job_parameters["sample_limit"] = str(sample_limit)

response = client.jobs.run_now(
job_id=int(Config.DQ_GENERATION_JOB_ID),
job_parameters=job_parameters
)

return {"run_id": response.run_id}

Step 3b: Data Profiling

The serverless notebook profiles the table to understand its structure:

from databricks.labs.dqx.profiler import DQProfiler

  # Profile the data
  profiler = DQProfiler(WorkspaceClient())
  profile_result = profiler.profile(
      df=spark.table(table_name).limit(sample_limit),
      output_type="dict"
  )

  # Extract key statistics
  column_stats = []
  for col in profile_result["columns"]:
      column_stats.append({
          "name": col["name"],
          "type": col["type"],
          "null_count": col["null_count"],
          "distinct_count": col["distinct_count"],
          "sample_values": col.get("sample_values", [])[:5]
      })

Step 3c: AI Generation

The profile and user prompt are sent to Claude:

from databricks.labs.dqx.generator import DQGenerator

  # Build context for AI
  context = f"""
  Table: {table_name}
  Column Statistics: {json.dumps(column_stats, indent=2)}

  User Requirements:
  {user_prompt}

  Generate DQX-compatible data quality rules that address these requirements.
  Consider the actual data statistics when choosing appropriate checks.
  """

  # Generate rules using DQX Generator (which calls Model Serving)
  generator = DQGenerator(WorkspaceClient())
  rules = generator.generate_dq_rules_ai_assisted(
    user_input=context,
    input_config=table_name,
    summary_stats=summary_stats_from_profiler
  )

Step 3d: Results Returned

After 30-60 seconds, Josh sees her generated rules:

The AI understood Josh's requirements and translated them into proper DQX syntax, choosing appropriate check functions and criticality levels.

Step 4: Validating Against Real Data

Before saving, Josh wants to know: Do these rules actually work with my data?

She clicks "Validate Rules" to test against the actual table:

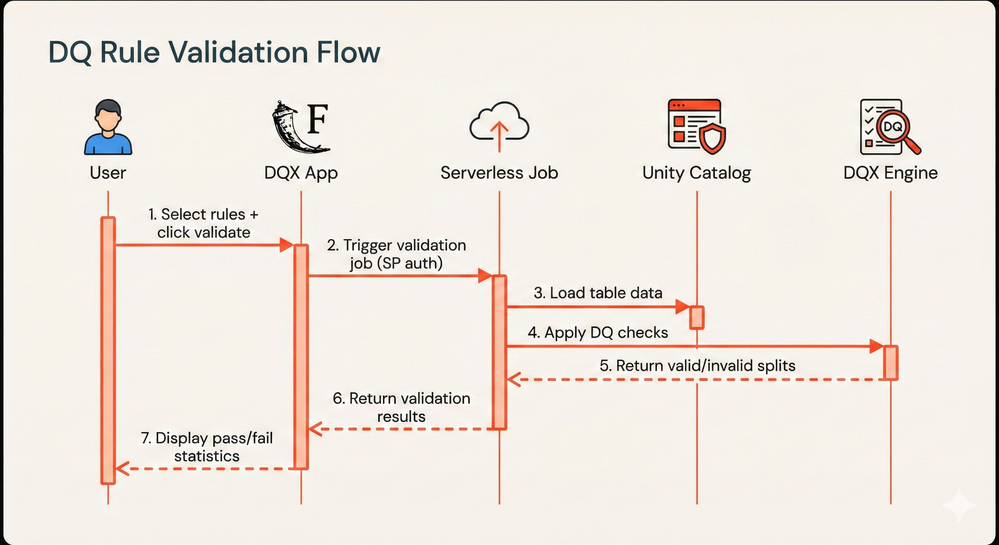

The validation job uses the DQX Engine to apply checks:

from databricks.labs.dqx.engine import DQEngine

  # Initialize engine
  dq_engine = DQEngine(WorkspaceClient())

  # Load data
  df = spark.table(table_name)

  # Apply checks and split results
  valid_df, invalid_df = dq_engine.apply_checks_and_split(df, checks)

  # Calculate statistics
  total_rows = df.count()
  valid_rows = valid_df.count()
  invalid_rows = invalid_df.count()

  # Get per-rule breakdown
  rule_results = []
  for check in checks:
      rule_name = check.get("name", "unnamed")
      violations = invalid_df.filter(
          col("_dq_issues").contains(rule_name)
      ).count()

      rule_results.append({
          "rule": rule_name,
          "violations": violations,
          "pass_rate": ((total_rows - violations) / total_rows) * 100
      })

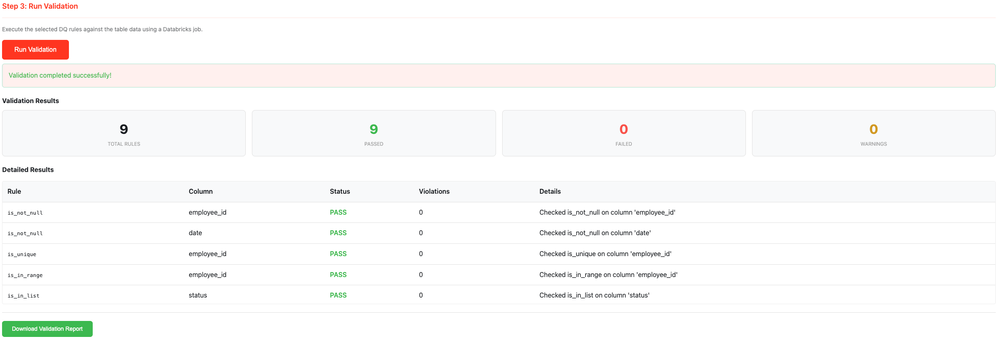

Josh sees how the DQ rules was applied on the selected table:

Step 5: AI Analysis and Recommendations

Before saving, Josh clicks "Analyze with AI" to get expert insights:

def analyze_rules(rules: List[Dict], table_name: str,
                    user_prompt: str) -> Dict[str, Any]:
      """Analyze DQ rules using AI via SQL Statement Execution."""

      analysis_prompt = f"""You are a Data Quality expert.
      Analyze the following DQ rules for table '{table_name}'.

      User's original requirement: {user_prompt}

      Generated Rules: {json.dumps(rules, indent=2)}

      Provide a JSON response with:
      - summary: 2-3 sentence overview
      - rule_analysis: explanation of each rule
      - coverage_assessment: how well rules cover requirements
      - recommendations: suggestions for additional rules
      - overall_quality_score: 1-10 rating
      """

      # Execute via ai_query() SQL function (uses user's token)
      sql = f"""
      SELECT ai_query(
          '{Config.MODEL_SERVING_ENDPOINT}',
          '{analysis_prompt}'
      ) as analysis
      """

      response = ws.statement_execution.execute_statement(
          warehouse_id=warehouse_id,
          statement=sql,
          wait_timeout="0s"  # Async execution
      )

      # Poll for results...

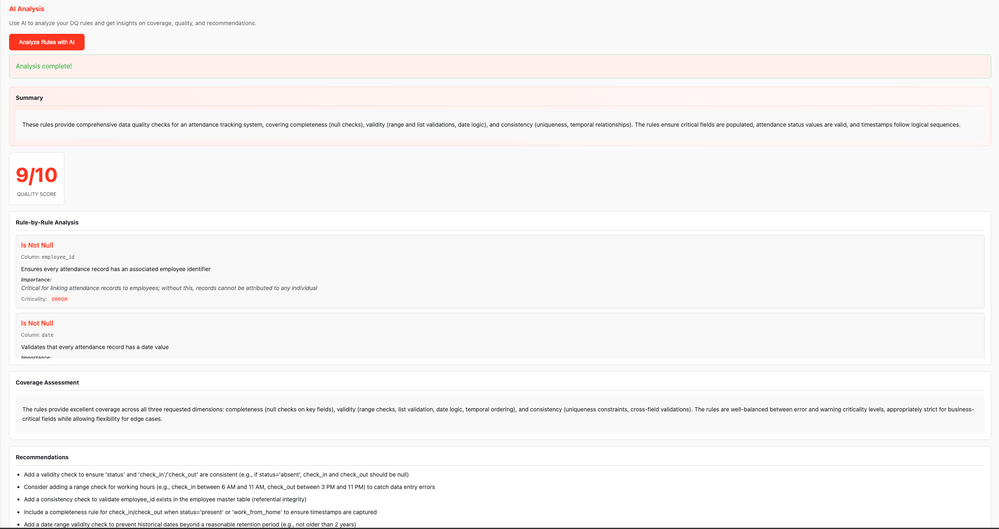

The AI analysis tells Josh on below metrics:

Quality Score
Coverage: Good coverage of explicit requirements
Recommendations

Step 6: Saving with Version Control

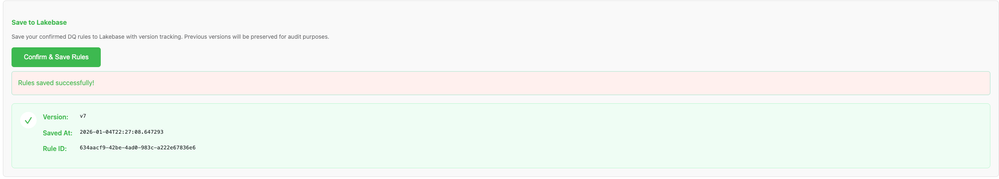

Satisfied with the rules, Josh clicks "Confirm & Save":

def save_rules(table_name: str, rules: List[Dict],
                 user_prompt: str, ai_summary: Optional[Dict] = None) -> Dict:
      """Save DQ rules to Lakebase with versioning."""

      # Get next version number
      version = LakebaseService.get_next_version(table_name)

      # Deactivate previous versions
      cursor.execute("""
          UPDATE dq_rules_events
          SET is_active = FALSE
          WHERE table_name = %s AND is_active = TRUE
      """, (table_name,))

      # Insert new version
      cursor.execute("""
          INSERT INTO dq_rules_events
          (id, table_name, version, rules, user_prompt,
           ai_summary, created_by, created_at)
          VALUES (%s, %s, %s, %s, %s, %s, %s, CURRENT_TIMESTAMP)
          RETURNING id, version, created_at
      """, (
          str(uuid.uuid4()),
          table_name,
          version,
          json.dumps(rules),
          user_prompt,
          json.dumps(ai_summary) if ai_summary else None,
          "dq-rule-generator-app"
      ))

      return {
          "success": True,
          "version": version,
          "message": f"Rules saved as version {version}"
      }

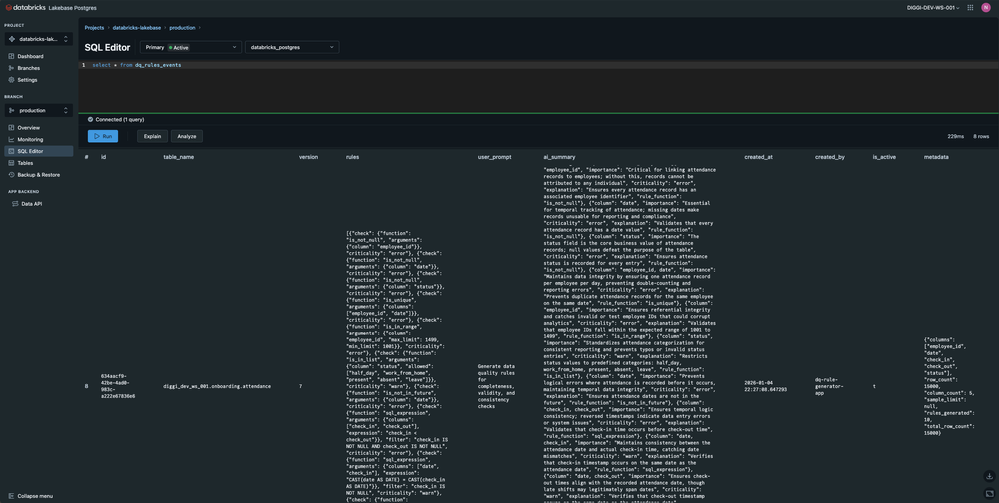

Josh's rules are now:

Stored in Lakebase with respective version
Linked to her original prompt (for context)
Includes AI analysis summary
Ready for use in production pipelines

Security Architecture: The Three Authentication Paths

Security was a primary design concern. Different operations require different authentication strategies:

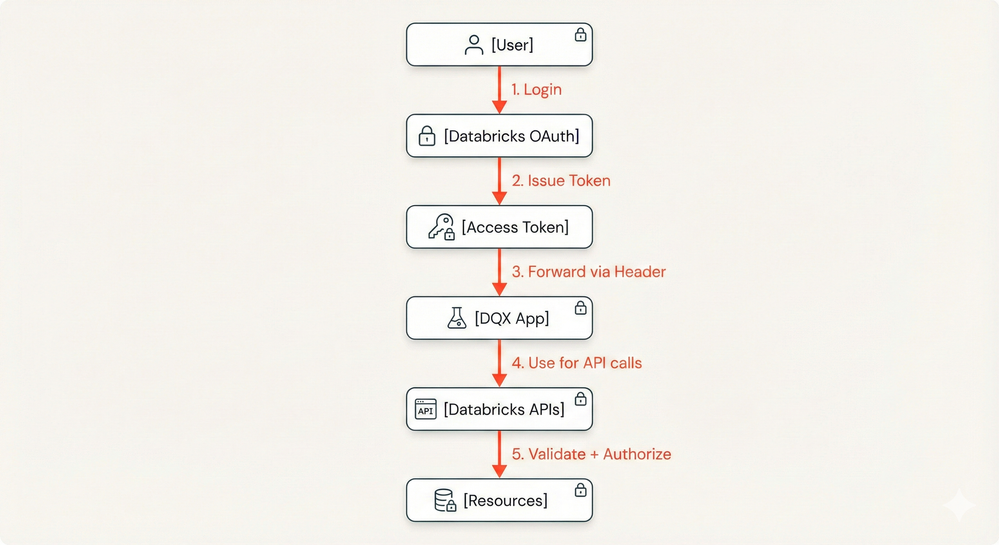

Path 1: On-Behalf-Of (OBO) for Data Access

When Josh browses catalogs or queries data, her OAuth token is forwarded:

def _get_sql_connection(self):
"""SQL connection using user's token (OBO)."""
user_token = request.headers.get('x-forwarded-access-token')

if user_token:
# OBO: Use Josh's token
return sql.connect(
server_hostname=host,
http_path=http_path,
access_token=user_token
)

Why OBO? Josh should only see tables she has SELECT permission on. If she tries to access the tables where she don't have SELECT access, she'll get a permission denied error - exactly as expected.

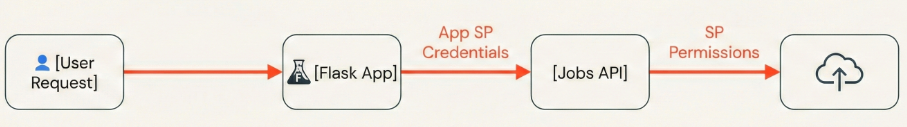

Path 2: Service Principal for Jobs

Jobs API doesn't support user tokens, so we use the app's service principal:

def trigger_dq_job(self, table_name: str, user_prompt: str):
      """Trigger job with app service principal."""

      # use_user_token=False → Use SP credentials
      client = self._get_client(use_user_token=False)

      response = client.jobs.run_now(
          job_id=int(Config.DQ_GENERATION_JOB_ID),
          job_parameters={...}
      )

Security Note: The service principal has CAN_MANAGE_RUN permission on specific jobs only - it can't create new jobs or access other resources.

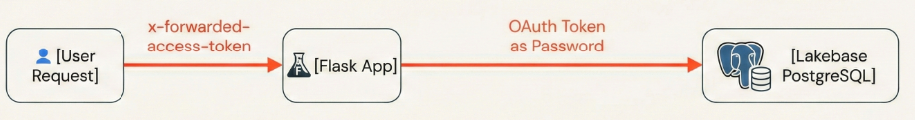

Path 3: OAuth for Lakebase

Lakebase uses Josh's OAuth token as her PostgreSQL password:

def get_connection():
"""PostgreSQL connection with OAuth."""
user_email = request.headers.get('x-forwarded-email')
user_token = request.headers.get('x-forwarded-access-token')

return psycopg2.connect(
host=Config.LAKEBASE_HOST,
database=Config.LAKEBASE_DATABASE,
user=user_email, # Josh's email
password=user_token, # Her OAuth token
sslmode='require'
)

Why? Rule ownership is tracked. When Josh saves rules, Lakebase knows it was her - enabling audit trails and access control.

Deployment: Infrastructure as Code

The entire application deploys using Databricks Asset Bundles (DAB):

# One command to deploy everything
databricks bundle deploy -t {env}

This deploys the Flask app, serverless jobs, notebooks, and configures all permissions automatically.

# resources/apps.yml - Key configuration
resources:
apps:
dqx_app:
name: "dqx-rule-generator-${bundle.target}"
source_code_path: ../src

user_api_scopes:
- sql # Enable OBO authentication

resources:
- name: "generation-job"
job:
id: ${resources.jobs.dq_rule_generation.id}
permission: "CAN_MANAGE_RUN"

Three environments (dev, stage, prod) with isolated configurations ensure safe promotion through the pipeline.

Testing

Standard pytest suite with mocked Databricks services:

def test_get_catalogs_with_mock(self, app):
"""Test get_catalogs with mocked SQL connection."""
with patch.object(service, 'execute_sql') as mock_sql:
mock_sql.return_value = ["main", "samples"]
catalogs = service.get_catalogs()
assert catalogs == ["main", "samples"]

CI runs unit tests on every push; integration tests require a Databricks connection and run separately.

Lessons Learned and Best Practices

1. Design for OBO from Day One

Retrofitting OBO authentication is painful. Design your data access layer to accept tokens from the start:

# Good: Token passed explicitly
def get_catalogs(self, token: str) -> List[str]:
...

# Better: Token extracted from request context
def get_catalogs(self) -> List[str]:
token = self._get_user_token() # From x-forwarded-access-token
...

2. Use Serverless for Unpredictable Workloads

Rule generation time varies wildly based on:

Table size
Number of columns
Complexity of requirements
AI model response time

Serverless jobs handle this perfectly—no cluster management, no idle costs.

3. Version Everything

Rules change. Requirements evolve. Always keep history:

# Query rule history for any table
SELECT version, created_at, user_prompt, rules
FROM dq_rules_events
WHERE table_name = 'catalog.schema.table'
ORDER BY version DESC;

4. Fail Gracefully

External services fail. Handle it gracefully:

def get_catalogs(self) -> List[str]:
try:
return self.execute_sql("SHOW CATALOGS")
except Exception as e:
logger.error(f"Catalog query failed: {e}")
return ["main"] # Sensible default

5. Make AI Interactions Observable

AI responses can be unpredictable. Log everything:

def analyze_rules(rules, table_name, prompt):
logger.info(f"AI Analysis Request: table={table_name}, rules={len(rules)}")

result = call_ai(...)

logger.info(f"AI Analysis Response: score={result.get('quality_score')}")
return result

TL;DR

DQX Data Quality Manager is an AI-powered Databricks App that lets you generate, validate, and version data quality rules using natural language.

Prerequisites:

Databricks workspace (With Lakebase Autoscaling enabled)
Unity Catalog enabled
SQL Warehouse (Serverless recommended)
Model Serving endpoint access

Get Started:

git clone https://github.com/dediggibyte/databricks_dqx_agent.git
cd databricks_dqx_agent
create your .env file with the required variables.
databricks bundle deploy -t dev

Resources:

Conclusion

Data quality has long been the domain of specialists. With DQX Data Quality Manager, we've shown that:

Natural language can replace complex syntax - Anyone can describe quality requirements
AI understands data context - Rules are tailored to actual data characteristics
Enterprise security is non-negotiable - OBO ensures proper access control
Modern platforms accelerate development - Databricks Apps + DAB = rapid deployment
Open source enables collaboration - Build on our work, contribute improvements

The future of data quality is AI-native, user-friendly, and democratized. We've built a foundation - now it's your turn to extend it.
