This use case demonstrates how a SaaS product can be deployed for multiple customers or business units, ensuring data isolation at every layer through workspace separation, fine-grained access control with Unity Catalog, and secure processing using UDF-based row-level security.
It would consist of the below steps in order to build multi-Tenant:

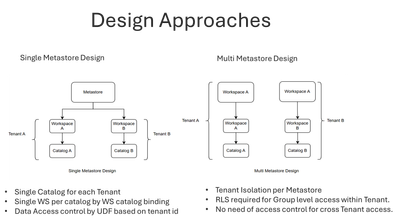

Design Approaches: I will talk about 2 different design approaches for this.
Architecture Components

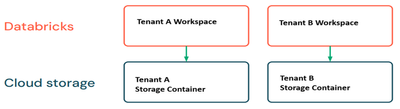

1. Cloud Storage Setup (S3/ADLS):
Organize buckets/folders by tenant for strict isolation. This point is required for Storage Isolation and needs to follow below steps:
- Single Bucket for each Tenant (Customer)
- Folder wise segregation at Env Level.
- Attach External Locations to catalogs, map them to storage paths.
- Use IAM roles per tenant workspace (one per tenant) for secure access via Unity Catalog’s External Locations + Storage Credentials.
s3://my-saas-lakehouse/
├── tenant_a/
│ ├── raw/
│ ├── bronze/
│ ├── silver/
│ └── gold/
├── tenant_b/
│ ├── raw/
│ ├── bronze/
│ ├── silver/
│ └── gold/
└── shared/
├── reference_data/
└── system_logs/
2. Unity Catalog Structure
Create one catalog per tenant:
Catalogs:
- tenant_a_catalog
- tenant_b_catalog
- shared_catalog
Each catalog contains:
Schemas:
- raw
- bronze
- silver
- gold
Attach External Locations to catalogs, map them to storage paths.
3. Workspace Binding
Each customer/tenant has a dedicated Databricks workspace.
Use the Unity Catalog workspace binding feature:
Bind only tenant_a_catalog to Tenant A Workspace
Bind only tenant_b_catalog to Tenant B Workspace
This ensures:
Workspace cannot access any unbound catalogs
Security is enforced by design
Example:
databricks unity-catalog bind-catalogs \
--workspace-id=12345 \
--catalogs tenant_a_catalog,shared_catalog

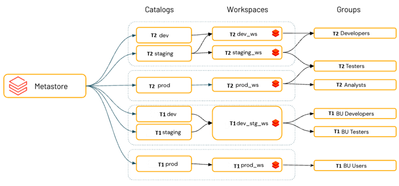

UC Isolation with Workspace Binding:

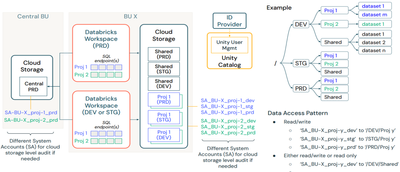

Environment Isolation with Access pattern per Tenant:

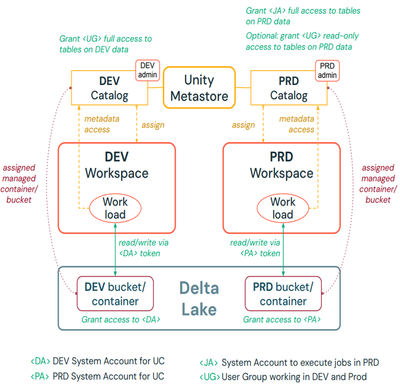

SDLC Setup with UC per Tenant:
Approach
- For Every Tenant, all related SDLC workspaces (DEV, STG, PRD, …)
oIsolate the environments on the Catalog level of the 3-level namespace of Unity Catalog. Assign DEV, STG, PRD workspaces to their respective catalog only.
oIsolate the DEV, STG, PRD data locations by assigning dedicated managed buckets/containers to the catalogs
oIsolate admin scope by delegating administration of the catalogs to different admins for DEV, STG, PRD
- Catalog names can be combinations of SDLC and business / organizational unit names, e.g. sales_dev, sales_prd, engineering_dev
- Access to workspaces, clusters and endpoints needs to be configured accordingly

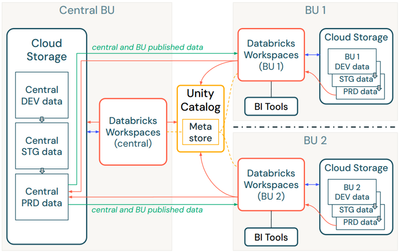

Central Analytics:
This approach is used as if Centralized Analytics is required for all the Tenants. This would have separate Centralized WS+ Catalog and ETL process would flow the data to this catalog. Data agreement should be done with all tenants before setting up this process and only agreed data sets should be flown. Proper Security framework should be setup for the data processing and data access for the ETL and consumption from Centralized catalog. It performs below tasks:
Data Production
- Central Ingest & ETL by the central BU
- Other BUs create (business) data sets
Data Publishing
- Central BU publishes data in central PRD storage and into the PRD catalog of the Central BU in UC
- BUs requests from Central team to publish from their PRD storage to central PRD storage and into the BU catalog in UC that is maintained by Central
Data Governance (centralized)
- Central team and each BU (for non published) data can work independently on their catalogs
- Central team applies additional quality assurance and maintains ACLs in the central BU catalog
Data Consumption
- Published data will be discovered in the Central catalog and consumed from the central PRD storage
Platform operations
- Central team provides platform blueprints, creates environments for BUs (automated)
- Central team could provide common data services
Here BU1 and BU2 represents the Tenants and there will be no access across BUs should be provided.

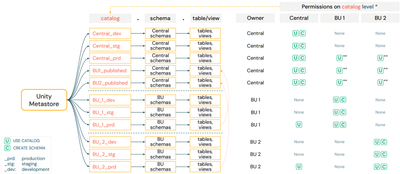

How the Metadata Managment should like:
In this Architecture Design Secure access to data is important key factor. It is required to make sure that no cross access of data across tenants allowed at any cost.
4. Secure Data Processing
In each tenant workspace:
Setup ETL/ELT jobs using Databricks Jobs or Workflows
Use Delta Live Tables (DLT) for managing CDC/incremental pipelines
Enforce row-level security in Delta tables using UDFs + UC GRANTS
5. Security Controls
a. Row-Level Security via SQL UDFs
Create a SQL UDF that filters rows based on the current user’s group or email:
CREATE FUNCTION shared_catalog.security_fn.tenant_row_filter(user_email STRING, tenant_id STRING)
RETURNS BOOLEAN
RETURN user_email IN (
SELECT user_email
FROM shared_catalog.security_mapping
WHERE tenant_id = tenant_id
);
Then apply the filter on table:
ALTER TABLE tenant_a_catalog.silver.orders
SET ROW FILTER shared_catalog.security_fn.tenant_row_filter(user(), tenant_id)
ON (tenant_id);
This ensures:
Even if someone queries tenant table from shared context, only matching rows are visible.
No need to duplicate logic across tenants.
b. Schema/Column Masking
This is useful when group level access to be provided within single tenant
ALTER TABLE tenant_a_catalog.gold.customer_info
ALTER COLUMN ssn
SET MASKING POLICY shared_catalog.security_fn.mask_ssn

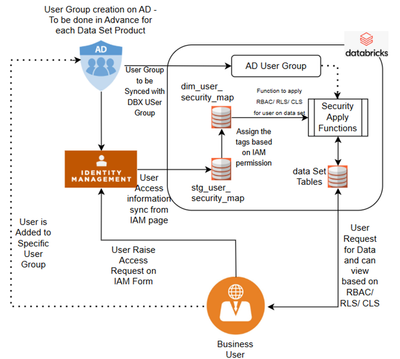

Security Control – Account Mapping for Access Control
6. User Access Management
Use SCIM provisioning or APIs to automate user/group creation per tenant workspace
Add users to tenant-specific groups:
group_tenant_a_users → Access only tenant_a_catalog
group_tenant_b_users → Access only tenant_b_catalog
Grant permissions:
GRANT USAGE ON CATALOG tenant_a_catalog TO `group_tenant_a_users`;
GRANT SELECT ON TABLE tenant_a_catalog.gold.orders TO `group_tenant_a_users`;
If I need to summarize this overall security process, it follows the steps:
- Secure Data Processing: Each Teant Workspace Includes:
- Setup ETL/ELT jobs using Databricks Jobs or Workflows
- Enforce row-level security in Delta tables using UDFs + UC GRANTS
- Security Control
- Row Level Security via UDF
- Schema/ Column Masking
- User Access Management by external IDP
- Use SCIM provisioning or APIs to automate user/group creation per tenant workspace
- Add users to tenant-specific groups & Grant permissions.
Summary of Isolation Techniques
Layer Technique
| Storage | Folder-level + Storage Credential isolation |
| Compute | Workspace-level isolation |
| Data Access | Unity Catalog bindings + RBAC |
| Row-level access | UDF-based row filter |
| Column masking | Data masking policies |
| Auditing | Unity Catalog audit logs |

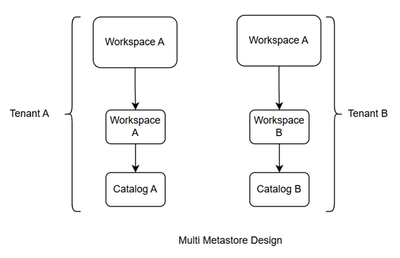

Isolation at Metastore level
Approach:
- Single Metastore per Tenant
- Create Catalog under Tenant specific Metastore. Isolate Env specific catalogs (minimum 2, prod and lower env as per standard).
- WS to catalog binding to segrate the processing and access control for different Environment.
- Security:
- Storage level access
- Schema level isolation if required
- Create User/ group and implement RLC/ CLS
Single and Multi Metastore Comparison Analysis
Feature / Concern | Single Metastore (Shared) | Multi-Metastore (One per Tenant) |
Metastore Isolation | Shared across all tenants | Fully isolated |
Data Isolation | Requires RLS, masking | Natural hard boundary |
Workspace Binding | Catalog-level binding | Bound to one workspace |
Cross-Tenant Access Risk | Higher risk | Very low risk |
Access Control Complexity | High (groups, UDFs) | Lower (per metastore) |
Row-Level Security (RLS) | Mandatory | Needed when user group level Access Required |
Storage Layer | Bucket Level Isolation | Different Storage Account |
Metastore Admins | See all data unless filtered | Per-tenant control |
Scalability | Supports 100+ tenants | Practical < 50 tenants |
Governance Overhead | High | Lower as Cross Tenant access is not feasible. |
Backup / DR | Global for all tenants | Per-tenant plan |
Cost Management | Hard to split, would need tag based processing | Per-tenant tracking |
Use Case Fit | B2B SaaS, shared analytics | Regulated industries. Cross Tenant Access for Admin is restricted. |
