Dynamic cluster via ADF vs standalone Databricks cluster processing issue

[CzarR]

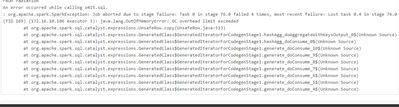

I have a databricks notebook that writes data from a parquet file with 4 million records into a new delta table. Simple script. It works fine when I run it from the Databricks notebook using the cluster with config in the screenshot below. But I run the through an ADF pipeline where we spin up a dynamic cluster with config below it fails with error below. Can you please suggest? Thanks in advance.

ADF dynamic Pyspark Cluster:

ClusterNode: Standard_D16ads_v5
ClusterDriver: Standard_D32ads_v5
ClusterVersion: 15.4.x-scala2.12
Clusterworkers: 2:20

I see the executor memory here is: 19g
offheap memory: 500 MB

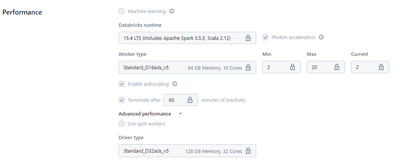

Databricks Pyspark cluster:

I see the executor memory here is: 12g
offheap memory: 36GB

[ilir_nuredini · Accepted solution]

Hello @CzarR ,

From first glance it looks like offheap memory issue and thats why you would see a "GC overhead limit exceeded" error.
Can you try enabling and adjusting the offheap memory size in the linked service where you define the cluster spark configurations and apply these configs:

"spark_conf": {
  "spark.memory.offHeap.enabled": "true",
  "spark.memory.offHeap.size": "36g"
}

Hope that helps. Let me know how it went and we can look into possible different options.

Best, Ilir

[CzarR]

Hi, trying that now. Will let you know. Thanks.

[CzarR]

I bumped it up to 8Gb and it worked. Thank you so much for the help.
