Building Multi Agent System with Supervisor Agent

[Dataninsight]

Why Multi-Agent Systems Are No Longer Optional in Enterprise AI?

Enterprise AI is beginning to hit a ceiling not because today’s models lack capability, but because single agents struggle to manage cross-functional complexity.

Modern business problems are rarely confined to a single domain. They span structured analytics, unstructured documents, operational workflows, external systems, and strict access controls.

Press enter or click to view image in full size

An agent optimized for just one of these domains cannot reliably solve problems that cut across all of them. This is why multi-agent systems are becoming foundational to enterprise AI architectures.

Single agents perform well when tasks are narrowly defined.

They can handle policy Q&A, retrieve documents, generate SQL for analytics, or interact with APIs in isolation. However, real enterprise questions are rarely that simple.

Consider a request such as: “Provide a market analysis using research reports, internal usage data, and customer feedback, and highlight operational risks.” Delivering a meaningful answer requires document intelligence, structured data querying, process knowledge, and potentially integration with external systems. It is inherently cross-domain.

Press enter or click to view image in full size

When a single agent attempts to handle all of this complexity, performance degrades. Routing decisions become unreliable because the agent must infer which capability to use at each step. Context windows grow noisy as unrelated data accumulates. Governance becomes fragile when structured data access and external integrations are blended inside one reasoning chain. Most critically, hallucination risk increases as the agent stretches beyond its specialized competence.

The solution is not larger prompts or more instructions layered onto a single agent. The solution is coordination.

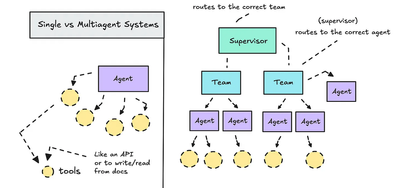

Enter Multi-Agent Orchestration

Multi-agent systems divide responsibility:

• Each agent specializes in a domain
• A supervisor coordinates execution
• Results are synthesized into a coherent response

Press enter or click to view image in full size

A supervisor agent coordinates execution, decomposes complex tasks into manageable subtasks, routes them to the appropriate specialists, and synthesizes the results into a coherent response.

This architectural model significantly improves accuracy, scalability, governance, and observability.

On Databricks, this orchestration pattern is implemented through Agent Bricks: Supervisor Agent, enabling enterprises to move beyond isolated AI tools and toward coordinated, production-grade AI systems.

High-Level Architecture Layers

A production-grade multi-agent system on Databricks consists of five layers.Each layer serves a distinct responsibility:

1. Request & Identity Layer: This is where requests enter the system through an application UI, an internal portal, an API endpoint, or a conversational interface. Before any reasoning occurs, the system authenticates the user, resolves their role, injects permission context, and retrieves any relevant session state. Every request is therefore identity-aware from the outset. This is essential because all downstream delegation performed by the Supervisor Agent must strictly respect the user’s permissions and access boundaries.
2. Supervisor Orchestration Layer: At the core of the architecture sits the Supervisor Orchestration Layer, which acts as the coordination engine. The Supervisor Agent does not attempt to solve domain problems directly. Instead, it determines what kind of problem it is dealing with and how to decompose it. It first classifies intent, deciding whether the task requires analytics, document retrieval, API interaction, or multi-step reasoning across multiple domains. It then decomposes complex requests into structured subtasks. For example, a request such as “Provide market analysis using research reports and internal metrics” is broken down into discrete steps such as querying usage metrics, retrieving research summaries, combining insights, and generating executive recommendations. The Supervisor routes each subtask to the appropriate specialist agent, plans whether those tasks should execute sequentially or in parallel, defines retry or fallback logic, and finally synthesizes all outputs into a coherent response. Its role is coordination, not specialization.
3. Domain-Specific Subagents: Beneath the Supervisor are the Domain-Specific Subagents. These agents are deliberately narrow in scope and optimized for clearly defined responsibilities. An Analytics or Genie Agent translates natural language into SQL, executes structured metric queries, and performs aggregation or KPI analysis against governed data managed in Unity Catalog. A Knowledge Agent handles document retrieval using retrieval-augmented generation, performs summarization, and synthesizes research from indexed repositories or vector stores. An Integration or Tool Agent interacts with external systems such as CRMs, ticketing platforms, workflow engines, or APIs, often through MCP servers or secure endpoints. The architectural principle is strict domain separation. Each subagent operates within clear boundaries, produces structured outputs, and avoids reasoning outside its specialty. This improves routing accuracy and materially reduces hallucination risk.
4. Tool & Data Access Layer: Supporting these agents is the Tool and Data Access Layer, which contains Unity Catalog tables, SQL functions, governed user-defined functions, external API connections, and MCP servers. All access within this layer is permission-controlled. The Supervisor can only delegate execution to endpoints that have CAN QUERY permission, to functions with EXECUTE permission, and to connections with USE CONNECTION permission. This enforces fine-grained access control at execution time and ensures that orchestration never bypasses governance policies.
5. Governance & Observability Layer: Governance and security are embedded directly into the orchestration logic rather than layered on afterward. The Supervisor enforces table-level policies, row-level security, endpoint access controls, function execution rights, and connection permissions. If a user lacks access to a particular dataset or tool, the Supervisor modifies the execution plan or halts delegation accordingly. Restricted data is never surfaced, even indirectly. This embedded enforcement model is critical for enterprise deployment, where compliance and auditability are non-negotiable.

In practice, the architecture supports multiple execution patterns. When tasks depend on each other, the Supervisor orchestrates sequential execution, such as running analytics before retrieving supporting documentation and then synthesizing both. When tasks are independent, it can execute them in parallel, for example retrieving usage metrics while simultaneously gathering research summaries. It also supports conditional routing, where additional validation is triggered if tool confidence is low, outputs appear inconsistent, or access restrictions require fallback behavior.

After subagents complete their respective tasks, the Supervisor performs final synthesis. It normalizes outputs into consistent formats, resolves conflicting signals, prioritizes insights, and generates a structured response tailored to the user’s context. This is where cross-domain reasoning emerges not from a single agent attempting to reason over everything, but from coordinated specialists whose outputs are intelligently combined.

A production deployment also requires strong observability and continuous improvement mechanisms. Routing accuracy metrics, tool invocation logs, latency breakdowns per agent, and error monitoring provide operational transparency. Human feedback loops allow the system to refine routing decisions and execution plans over time. Multi-agent systems must be treated as measurable, evolvable systems rather than opaque prompt chains.

Taken together, this layered architecture transforms AI from an isolated assistant into a governed, orchestrated system capable of handling cross-functional enterprise complexity.

How to Build a Coordinated Multi-Agent System with Agent Bricks: Supervisor Agent

Agent Bricks provides a streamlined way to build and optimize domain-specific AI agent systems. Instead of writing custom orchestration code, you configure what you need and Databricks handles model selection, optimization, and deployment.

Agent Bricks supports four patterns:

• Information Extraction: Turn documents into structured tables
• Custom LLM: Summarization, classification, text transformation
• Knowledge Assistant: Q&A over documents with citations
• Multi-Agent Supervisor: Coordinate multiple agents and tools

What Is Agent Bricks: Supervisor Agent?

Agent Bricks: Supervisor Agent is an orchestration engine designed to coordinate multiple AI agents and enterprise tools into a single, governed system. It connects and manages Genie Spaces, Knowledge Assistant agent endpoints, Unity Catalog functions, and external MCP servers, enabling them to work together seamlessly on complex, cross-domain tasks.

The Supervisor uses advanced orchestration patterns to classify user intent, decompose complex problems into structured subtasks, route each task to the appropriate specialist agent, plan whether execution should occur sequentially or in parallel, and synthesize the results into a coherent, unified response. Instead of relying on brittle prompt chains or hard-coded workflows, it builds a modular coordination layer that exposes a single, production-ready endpoint.

This architecture is particularly well-suited for enterprise use cases such as:

• Generating market intelligence by combining research reports with internal metrics,
• Answering internal process questions while automating ticket backlogs,
• Accelerating customer service across policies and account systems, and
• Supporting cross-domain decision-making that integrates structured analytics with unstructured knowledge sources.

Requirements

Before building a Supervisor system, ensure your workspace is properly configured.

• Unity Catalog must be enabled, along with serverless compute.
• You need access to Mosaic AI Model Serving and to foundation models exposed through the system.ai schema.
• A serverless budget policy with a nonzero budget is required to support execution.
• For tracing and observability, Production Monitoring for MLflow (Beta) must be enabled.
• The Agent Framework must also have On-Behalf-Of-User authorization activated so the supervisor can execute tasks while honoring each user’s permissions.
• Your workspace must be located in a supported region (us-east-1 or us-west-2). If your workspace uses a compliance security profile with HIPAA controls, the Supervisor Agent preview must be enabled.

Additionally, the databricks-gte-large-en embedding endpoint must have AI Guardrails and rate limits disabled.

You must also have at least one subagent or tool ready for orchestration. This can be a Knowledge Assistant endpoint, a Genie Space, a Unity Catalog function, or an external MCP server configured with bearer token or OAuth machine-to-machine authentication.

Use Case: Enterprise Customer Support Intelligence

Business Question:
Which at-risk customers filed critical support tickets and also left negative product reviews?

Answering this requires combining three distinct capabilities:

• Structured analytics : Customer health scores and churn risk from governed tables (SQL)
• Support intelligence : Search and interpret ticket conversations (vector search)
• Review sentiment analysis : Evaluate product feedback stored as unstructured text

Each data source requires a different retrieval strategy. Forcing a single monolithic agent to handle all of this leads to poor routing, context overload, and governance risk.

Press enter or click to view image in full size

The Multi-Agent Approach

Instead of one overloaded agent, we use specialized agents:

• Analytics Agent — Customer metrics
• Knowledge Agent — Support tickets
• Review Intelligence Agent — Product sentiment
• Integration Agent — Operational lookups

Each agent is focused, optimized, and governed.

Above them sits the Agent Bricks Supervisor Agent, which:

• Classifies intent
• Breaks the query into subtasks
• Routes tasks to the correct agent
• Executes in parallel or sequence
• Synthesizes results into a unified response

The outcome is not multiple bots but a coordinated enterprise intelligence system.

What We’re Building?
To know more about how we design the codebase and in-depth details please follow these article mentioned below

Part 1: Architecture Foundations & Cross-Domain Use Case Design

Part 2: Designing Vector Endpoints & Index Architecture

Part 3: Publishing Soon

Part 4: Publishing Soon

For any doubts and quicker clarification reach out Linkedin
