Introduction
Scaling data pipelines across an organization can be challenging, particularly when data sources, requirements, and transformation rules are always changing. A metadata table-driven framework using LakeFlow Declarative (Formerly DLT) enables teams to automate, standardize, and scale pipelines rapidly, with minimal code changes. Let’s explore how to architect and implement such a framework.
What Is a Metadata Table-Driven Framework?
A metadata table-driven framework externalizes the configuration of your data pipelines—such as source/target mappings, transformation logic, and quality rules—into metadata tables. Pipelines are designed generically to consume this metadata, making onboarding new datasets or changing business rules a matter of updating tables—not redeploying code.
Why Use LakeFlow Declarative (Formerly DLT)?
DLT, part of Databricks, offers a declarative framework for building reliable and scalable data pipelines, supporting batch and streaming data. Combined with a metadata-driven approach, DLT provides:
- Automation of repeatable ingestion and transformation patterns.
- Data quality enforcement through built-in expectations.
- Scalability and maintainability of complex Lakehouse architectures

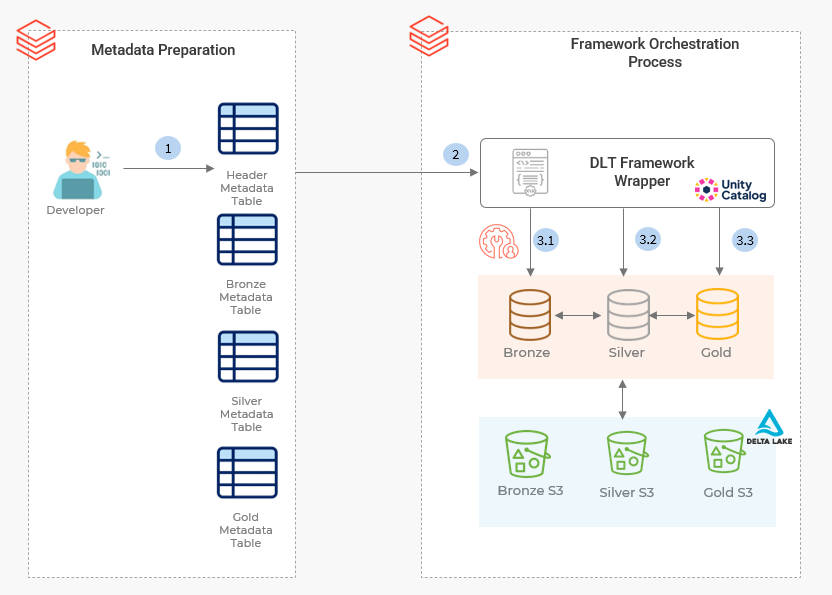

Process Flow:
Key Framework Components
Component | Purpose |
Metadata Tables | Store pipeline configs: source, target, rules, transformations |
Generic DLT Pipeline | Reads metadata to build ingestion, validation, and enrichment dynamically |
Transformation Logic | Parameterized SQL or scripts referenced from metadata |
How It Works
- Define Metadata Structure: Create tables that capture the required configurations:
- Control Header Table: Unique Logical Flow Group Identifier, Ingestion Pattern, ETL Layer, Compute Class
- Bronze Layer Metadata Table: Detail dataset level Entry for Flow Group available in Control Header table containing Source object name, type, format, landing path, Data Quality Rules.
- Silver Layer Metadata Table: Detail dataset level Entry for Flow Group available in Control Header table containing Transformation Query, CDC Logics, Partitioning/clustering
- Gold Layer Metadata table: Detail dataset level Entry for Flow Group available in Control Header table containing Business level aggregates, Data partitioning and archival policies, retention, data security via RLS/CLF.
- Orchestrate with a Generic DLT Framework Wrapper Pipeline
- Develop a single, parameter-driven DLT pipeline:
- Reads pipeline configurations from metadata tables.
- Dynamically ingests data, applies transformations & validations, writes outputs.
- Supports multiple data layers (bronze, silver, gold).
- Compatible with batch and streaming sources
- Processing Each Dataset in its respective schema
- Utilize common utilities and functions to handle each dataset according to the processing requirements defined for each layer using a generic wrapper script.
- The processed streaming tables and materialized views are then stored in their corresponding schemas: bronze, silver, and gold. Based on the parameters received from the orchestration process.
Note: For this process, generate a distinct DLT pipeline for every Logical Flow Group ID listed in the Header Metadata table, ensuring that each name is unique and corresponds to its group. Orchestration can be managed based on the Flow group ID using tools such as Control-M, Airflow, Databricks Workflows, or similar scheduling platforms.
Benefits of a Metadata-Driven LakeFlow Declarative (Formerly DLT) Framework
- Agility: Quickly onboard new data sources or update pipeline logic by modifying metadata—no code changes required.
- Consistency & Maintainability: Standardize transformations, quality rules, and updates across all datasets via centralized metadata, ensuring uniform processing.
- Scalability: Seamlessly scale to support hundreds of datasets with minimal incremental effort.
- Performance Optimization: Leverage Delta Lake’s high-performance, vectorized execution for efficient processing.
- Automation: Achieve built-in task orchestration, dependency management, and automated retries, reducing operational overhead.
- Data Quality & Reliability: Enforce data quality rules, enable native cleansing and deduplication, and benefit from ACID transactions for increased trustworthiness.
- Modularity & Reusability: Build modular, reusable pipeline components for flexible workflow design.
- Advanced Features: Natively support event-driven processing, real-time data quality metrics, visual pipeline DAG representation, and simple configuration for CDC and SCD Type 2.
- Auditability & Lineage: Track pipeline changes and data lineage for compliance and auditing.
