Schema hints: define column type as struct and incrementally add fields with schema evolution

[yit]

Hey everyone,

I want to set column type as empty struct via schema hints without specifying subfields. Then I expect the struct to be evolved with subfields through schema evolution when new subfields appear in the data.

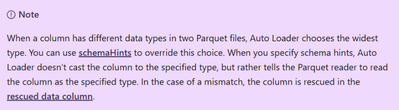

But, I've found in the documentation this explanation:

Does this affect JSON files as well? Or, can I define empty struct and then evolve it with subfields?

If yes, how? Because I've tried different approaches but nothing works.

[K_Anudeep]

Hello @yit ,
You can’t. An “empty struct”  is treated as a fixed struct with zero fields, so AutoLoader will not expand it later. The NOTE in the screenshot applies to JSON just as much as Parquet/Avro/CSV.

If your goal is “discover whatever shows up under payload and keep adding new sub-fields,” simply don’t specify a hint for payload. AutoLoader will infer and evolve nested fields as and when they appear.

Example code(You can run it anywhere):

base    = "/tmp/repro_empty_struct_json/input"
out    = "/tmp/repro_empty_struct_json/out_empty_struct"
chk    = "/tmp/repro_empty_struct_json/chk"
schema = "/tmp/repro_empty_struct_json/schema"


# cleanup
for p in [base, out, chk,schema]:
    _ = dbutils.fs.rm(p, True)

# two files: second file introduces a new nested subfield "bar"
dbutils.fs.mkdirs(base)
dbutils.fs.put(f"{base}/file1.json", """{"id":1,"payload":{"foo":"x"}}""", True)
dbutils.fs.put(f"{base}/file2.json", """{"id":2,"payload":{"foo":"y","bar":123}}""", True)

spark.conf.set("spark.databricks.delta.schema.autoMerge.enabled", "true")  # writer evolution

### Run the below code###
dfB = (spark.readStream
  .format("cloudFiles")
  .option("cloudFiles.format", "json")
  .option("cloudFiles.schemaLocation", schema)
  .option("cloudFiles.inferColumnTypes", "true")
  .option("cloudFiles.schemaEvolutionMode", "addNewColumns")
  # no schemaHints for payload
  .load(base))

qB = (dfB.writeStream
  .format("delta")
  .option("checkpointLocation", chk)
  .trigger(availableNow=True)
  .start(out))
qB.awaitTermination()

spark.read.format("delta").load(out).printSchema()
print("C) Data:")
display(spark.read.format("delta").load(out))

##### Add a new file with more subfields####
dbutils.fs.put(f"{base}/file3.json",
               """{"id":2,"payload":{"foo":"y","bar":123,"abc":{"foo1":"x"}}}""",
               True)


#### Re-run the above code again ###

You will see that the job will fail for the first time, and once you retry ,it will ivolve the schema automatically and provide the expected schema and result

Please do let me know if you have any further questions. Thanks!

[yit]

@K_Anudeep thank you for the reply!
This is how I've developed it, but I have some erroneous files where that exact column is array instead of struct, so it's inferred as string (the most generic type between array and struct).
My goal was to define via schema hints that 'this column should be struct, but the nested structure should be evolved'.

[K_Anudeep · Accepted solution]

Hello @yit ,

Yeah, that's right, in that case, it would always evolve as a string, and that's an expected behaviour in Autoloder by design. Screenshot below:
