Translating SQL Value Function For XML To Databricks SQL

[BNV]

Trying to translate this line of a SQL query that evaluates XML to Databricks SQL.

SELECT

   MyColumn.value('(/XMLData/Values/ValueDefinition[@colID="10"]/@Value)[1]', 'VARCHAR(max)') as Color

The XML looks like this:

<XMLData><Values><ValueDefinition colID="10" Value="Red"/><ValueDefinition colID="20" Value="Square"/><ValueDefinition colID="3" Value=""/></Values></XMLData>

Databricks SQL doesn't seem to support this function ("AnalysisException: Undefined function: MyColumn.value").

Is there anything I can substitute within the query line that will work?

[hari-prasad]

Hi @BNV,

You can leverage UDF or pandasUDF to register user defined functions to customize to parse the XML data using standard python libraries or even in Scala or Java in Databricks notebooks.

In SQL warehouse, you can create custom SQL UDF, follow this link for more Introducing SQL User-Defined Functions | Databricks Blog.

[BNV]

Thank you but I'm not very familiar with Pandas. This might be out of my realm of knowledge.

Are you saying Pandas would have this functionality including using SQL and that SQL function or that I would need to create a UDF to parse XML (which sounds quite difficult).

[hari-prasad]

@BNV, you can leverage xpath SQL function which can parse the XML which works in both Notebook and SQL warehouse, follow this Spark SQL doc for more details https://spark.apache.org/docs/3.5.4/api/sql/#xpath

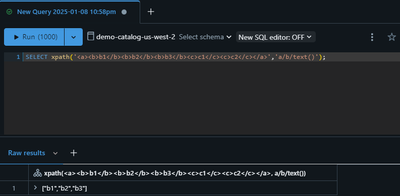

here is a sample example

[BNV]

This might be a good start but I do get an error ("Invalid XPath") when trying to access the column as the xpath. Is it not possible to use a column as the xpath?

SELECT xpath(MyColumn.value, '/XMLData/Values/ValueDefinition[@colID="10"]/@Value)[1]') as Remarks

[hari-prasad]

you can share a sample or mocked value, how your xml looks?

mean while you can give a try with below query

SELECT xpath_string(MyColumn.value, '/XMLData/Values/ValueDefinition[@colID="10"]/@Value')[1] as Remarks

[Stefan-Koch]

Since Spark Runtime 14.3 and higher, it is possible to read XML using the Spark Read method.

For example:

df = spark.read.option("rowTag", "books").format("xml").load(xmlPath)
df.printSchema()
df.show(truncate=False)

Have a look at the docu: https://docs.databricks.com/en/query/formats/xml.html
