Situation
Records are streamed from an input Delta table via a Spark Structured Streaming job. The streaming job performs the following.
- Read from input Delta table (readStream)
- Static join on small JSON
- Static join on big Delta table
- Write to three Delta tables using foreachbatch logic
Problem

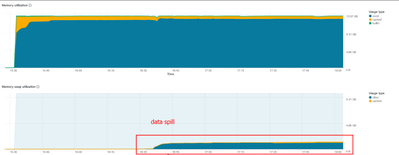

Step 3 is extremely slow. It takes more than 15 minutes to process a single batch of data using a job compute cluster with 2 Standard_DS3_v2 workers. Moreover, after 2-4 hours the job fails with an Out Of Memory exception. Looking at the metrics tab of the cluster, we notice a data spill to disk happening. The screenshot below shows the data spill.
Code snippets
The code snippet below shows step 3; the static join on the big Delta table. In essence, the big Delta table is loaded, de-duplicated and joined to the streaming records. Every time a batch is processed, the big Delta table is re-read, de-duplicated and joined to the batch of streaming records.
# Load big Delta table
big_delta_table = (
spark.read
.format('delta')
.table('big_delta_table ')
)
# De-duplicate big Delta table
c1_id_window = Window.partitionBy('c1').orderBy(F.col('updatedOn').desc())
c1_data = (
big_delta_table
.filter(F.col('c1').isNotNull())
.withColumn(
'row_num',
F.row_number().over(ir_id_window)
)
.filter(F.col('row_num') == 1)
.drop('row_num')
)
# De-duplicate big Delta table
call_sign_id_window = Window.partitionBy('c2').orderBy(F.col('updatedOn').desc())
c2_data = (
ovr_data
.filter(F.col('c2').isNotNull() & F.col('c1').isNull())
.withColumn(
'row_num',
F.row_number().over(call_sign_id_window)
)
.filter(F.col('row_num') == 1)
.drop('row_num')
)
clean_big_delta_table = c1_data.union(c2_data )
# Join streaming records with de-duplicated big Delta table
joined_records = (
streaming_records
.join(
F.broadcast(clean_big_delta_table ),
join_condition,
'left'
)
)The following code snippet shows step 4; the foreachbatch logic. The batch is persisted to avoid reprocessing the same data 3 times and then the data is written to 3 distinct sinks. Lastly, the batch is unpersisted.
def write_gold_tables(input_df: DataFrame, batch_id: str):
input_df.persist()
# Write to Delta table sink 1
# Write to Delta table sink 2
# Write to Delta table sink 3
input_df.unpersist(blocking=True)Questions
- Is there a way to optimize the code provided above, to increase the speed of the streaming job?
- How could we avoid the data spill to disk?
- What is the root cause of the OOM exception?
